Beschreibung

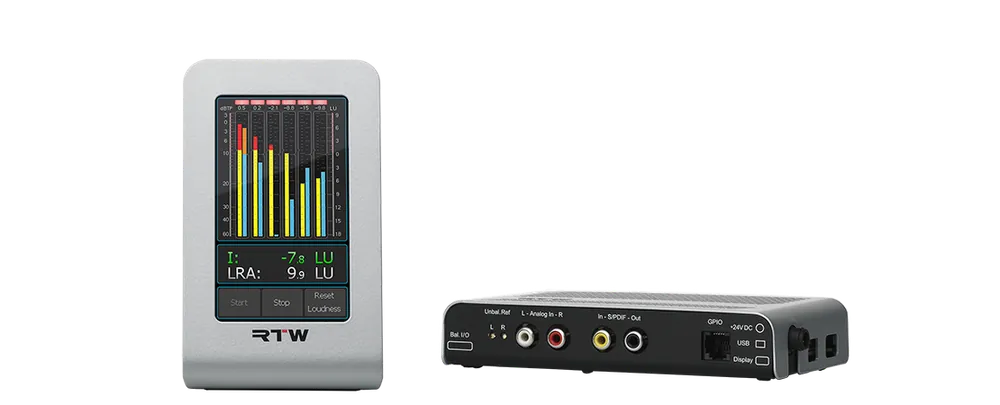

Professional Loudness, True Peak and PPM metering at an affordable price: TM3 Smart4.3″ Desktop TouchMonitor for editorial offices, edit suites, small control roomsFeatures4.3“ capacitve touch screen for vertical or horizontal use (Dimensions: 82.5 x 138 x 21/50 mm, W x H x D)Flexible display layout with scalable instrumentsSeparate interface box with audio I/O, USB, GPIO, low voltage connector (Dimensions: 146 x 27 x 85 mm, W x H x D)Audio: analog balanced (D-Sub) or unbalanced (RCA), S/PDIF (RCA), 3 x AES3 (D-Sub)2-channel Stereo (analog, digital), multichannel (digital), 5.1 (digital), input sources alternatively selectable, max. 6 channels at a timeUSB 2.0 connector (Mini-B), GPIO connector (RJ-12)Moving Coil instrumentsLoudness: EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specificSingle channel and summing loudness bargraphsLoudness Test Time ControlLoudness range (LRA) with MagicLRALoudness chartTimecode ReaderPPM & True PeakSPL & DialnormCorrelationNumerical displayComprehensive set of presetsPersonalization with Devicer DC1The Device Configurator software for Windows® and Mac OS X® is available in the download area For more Information please visit manufacturers webpage
