Beschreibung

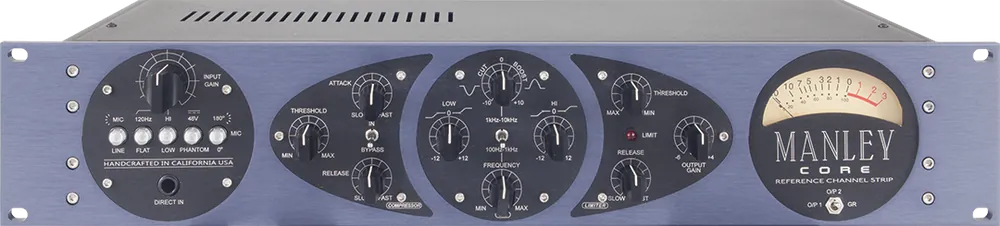

Building upon its 25-year legacy producing revered recording studio equipment, Manley Labs has distilled its CORE technologies from this lineage. 2014 delivers the Manley CORE, an innovative channel strip that combines Manley’s Greatest Hits with fresh technology. The remarkably intuitive front panel combines musical and forgiving circuitry that allows the musician to concentrate on his performance instead of being lost in a sea of knobs. Ease of use and intelligently chosen operating points make it virtually impossible to cut a bad sounding track!Manley’s experience and insight working with the industry’s top recording engineers and musicians culminates in the CORE. At this price, there is no other channel-strip with higher headroom or more seductive sound than the CORE. Handcrafted in the USA, built like a tank, built to endure, the epicenter of your recorded art will be the Manley CORE.The signal enters through our renowned hand-wound MANLEY IRON® input transformer with nickel laminations in a mu-metal can. The tube amplifying stage is the latest implementation of our famous Class A circuit topology found in the VOXBOX®and Manley Dual Mono & Mono Microphone Preamplifiers. This all-triode vacuum tube circuit runs on a regulated 300 Volt B+ supply yielding huge headroom and relentless output drive capability.FRONT PANEL CONTROLS:48V Phantom power switch120Hz High Pass Filter switchPhase Invert switchInput Attenuator (Variable Pad)Mic Pre Selectable Gain 40dB or 60dBLine Amp Selectable Gain 20dB or 40dB1/4″ DIRECT INPUT Similar to the DI in the Manley SLAM!®, this all-discrete solid-state circuit with 10 Meg Ohm input impedance is perfect for guitars, bass, keyboards, etc.COMPRESSOR:Featuring our successful ELOP® technology also found in our famous Manley VOXBOX®Compressor is uniquely before the Mic Preamp making it virtually impossible to clipRatio 3:1Continuously variable Attack, Release, and Threshold controlsSilent Bypass switchEQUALIZER:Low and High Baxandall Shelves (80Hz and 12kHz) with ±12dB rangeSweepable Midrange Bell EQ (100Hz – 1kHz) or (1kHz – 10kHz) with ±10dB rangeSweepable MID EQ curvesGentle Shelf EQLIMITER:Fast attack FET “brickwall” limiterContinuously Variable Threshold and Release controlsPeak Limit LED indicator10dB range output gain controlMETER:Large illuminated analog display3-way meter-select switch shows Compressor Gain Reduction, Micpre Output Level, and Main Output audio levels.INPUTS AND OUTPUTSBalanced XLR Mic InputBalanced XLR Line InputFront Panel Direct Instrument 1/4″ InputInsert point between Mic Preamp and EQ/Limiter via ¼” TRS jackBalanced XLR Direct Output (after Preamp/Compressor section)Balanced XLR Main OutputDeluxe CNC-machined 1/4″ thick faceplate with inlaid laser-engraved inserts adorn the rigid 2U steel chassis – all locally sourced in Southern California.
