Beschreibung

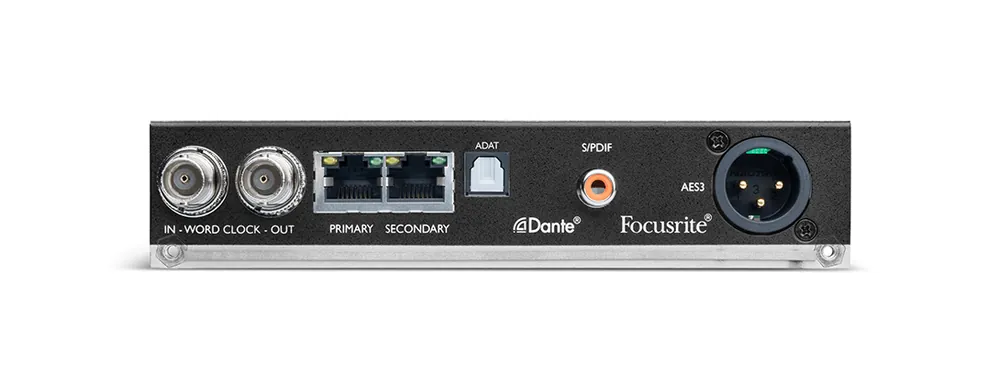

TWO-CHANNEL A-D CARD FOR ISA ONE, INCLUDING DANTE CONNECTIVITYISA ADN2 is an optional two-channel A-D card that provides high-quality analogue-to-digital conversion for the ISA One mic preamp and DI. Featuring Dante, AES3, ADAT andS/PDIF connectivity, the card operates at sample rates up to 24-bit/192kHz.The card offers primary and secondary RJ45 Dante output ports, an XLR connector for AES3 output, a TOSLINK connector for ADAT output and RCA connector for S/PDIFoutput. Word Clock I/O on BNC connectors allows synchronisation to multiple digital sources. This also includes syncing the Dante network to house clock,or for syncing external equipment to the Dante network.Dante outputs on the card provide ISA One with network connectivity to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-enabled device from hundreds of manufacturers. Metering and settings are accessed through RedNet Control, routing is configured using Dante Controller.And as with all Focusrite Pro products, wherever you happen to be in the world, you can rely on a three-year warranty if any Focusrite Pro hardware needs repairing or replacing due to a manufacturing fault. Two-channel analogue-to-digital converter for ISA OneUp to 24-bit/192kHz sample rateDante connectivity via Primary and Secondary Ethernet ports with redundancy and auto switchover in case of failureTwo-channel XLR connection for AES3 outputTwo-channel RCA connection for S/PDIF outputTwo-channel TOSLINK connector for ADAT outputWord Clock I/O on BNC connectors allows for synchronisation to multiple digital sources, for syncing the Dante network to house clock, or for syncing external equipment to the Dante networkRedNet Control and Dante Controller software allow Dante routing and control from a computer; no hardware patching requiredBrainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules. SPECIFICATIONSAUDIO PERFORMANCE0 DBFS Reference Levels22dBuFrequency Response20Hz – 20kHz ±0.1dBTHD+N-105dB (0.0006%) unweighted, 20Hz – 20kHz; -1dBFS inputNoise In Presence Of Signal-121dBu ‚A‘-Weighted (typical)Dynamic Range121dB ‚A‘-weighted (typical), 20Hz – 20kHzDIGITAL PERFORMANCESupported Sample Rates44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bitClock SourcesInternal or Word ClockCROSSTALKInput To InputFRONT PANEL OUTPUT CONNECTIVITYChannel Count2 x Dante channelsOutput1 x Male XLRDANTEOutput2 x Ethernet standard RJ45 connectors (Compatible with Cat 5e and above).Channel Count2 x Dante channelsAES3Channel Count2 x Dante channelsOutput1 x Male XLRADATChannel Count2 x ADAT channelsOutput1 x TOSLINK connectorsChannel Assignments @ 44.1 KHz, 48 KHzPort 1 = Channels 1 – 2Channel Assignments @ 88.2 KHz, 96 KHz: SMUXIPort 1 = Channels 1 – 2Channel Assignments @ 176.4 KHz, 192 KHz: SMUXIIPort 1 = Channels 1 – 2S/PDIFChannel Count2 x S/PDIF channelsOutput1 x RCA phono socketWORLD CLOCKWord Clock Input1 x BNC 75Ω port (Switchable Termination)Word Clock Output1 x BNC 75Ω port
