Beschreibung

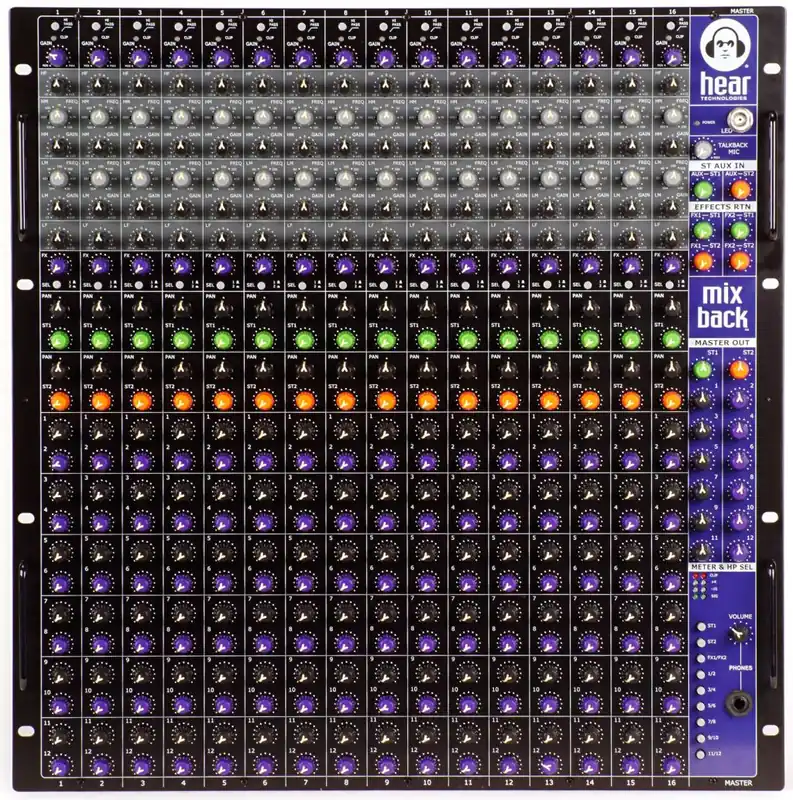

Mix Back MixerThe Mix Back is a flexible and affordable 16 x 12 x 2 x 2 monitor mixer that features two stereo outputs and twelve mono outputs. There are sixteen high quality Mic/Line inputs with passive split. It also features two HearBus outputs and two ADAT optical outputs. A perfect companion to our Hear Back personal monitor system. A talkback mic preamp permits talking to any mono output, master outputs and the intercom output.Included is a UV LED gooseneck lamp that makes the knob pointers and silkscreen on the front of Mix Back glow-in-the-dark! Input Channel Features:16 quality Mic/Line inputs with passive XLR splitPin 1 lift and Mic phantom power switchesChannel inserts Signal/Clip LED indicator100 Hz high-pass filterGain control4 band EQ with separate controls for sweep and cut/boost on mid bands Two stereo level and pan controls (ST1 and ST2)Twelve mono level controls (1-12)Switch selectable effects 1-2 sendsMaster Features:2 stereo and 12 mono TRS outputsSwitch selectable meter/headphone monitoring2 stereo TRS balanced effect returnsSwitch assignable FX1/FX2 returns to the 12 mono mastersStereo Aux return with level controls to both stereo busses – great for FOH mix or the studio “two mix”Buss inputs permit stacking of multiple mixers Talk back mic preamp assignable to stereo masters 1 and 2, mono outputs 1-12, and the balanced Intercom/slate outputRelay contact when the talk back intercom switch is pressed16 button talkback remote connects using standard CAT5e cable16 channels of ADAT and HearBus outputOther Features:Universal internationally approved internal power supply 11 RU chassisAll analog inputs and outputs are balanced
