Beschreibung

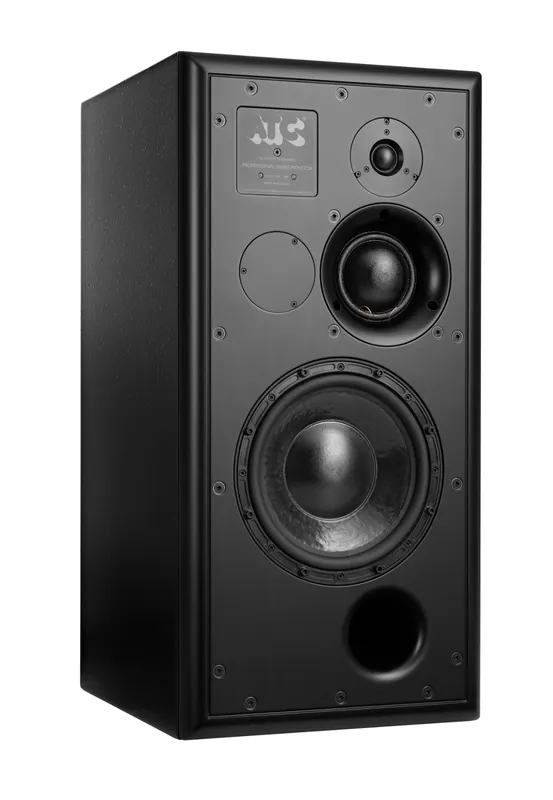

SCM50ASL Pro: 3-way ActiveFeatures25mm soft dome tweeter.Full „SL“ spec 9″/234mm bass driver.ATC 75mm „Super Dome“ mid driver.On board ATC grounded plane 350W Tri-amplifier.LF contour control.Clip indication.6 year warranty.SpecificationsDrivers :HF 25mm, Mid 75mm, LF 234mmAmplitude Linearity (±2dB) :70Hz-17kHzCut-off Frequencies (-6dB, free-standing) :38Hz, 22kHzHorizontal Dispersion :±80°, CoherentVertical Dispersion :±10°, CoherentMax. Continuous SPL (1 metre) :112dBCrossover Frequencies :380Hz, 3.5kHzInput Connectors :Male XLRInput Sensitivity :1VInput Sensitivity Trim :±6dBInput Impedance :Balanced > 10kΩAmplifier Output :Bass 200W, Mid 100W, High 50WFilters :Even Order Critically DampedOverload Protection :Active FET momentary gain reduction plus thermal tweeter protectionFront Panel Indicators :Power On indicator, Gain Reduction warningLF EQ :+6dB @ 40HzDimensions (HxWxD) :716 x 351 x 400mm (28.2″ x 13.8″ x 18.8″) Depth with amplifier at rear adds 3″Weight :49kg / 107.8lbs
