Beschreibung

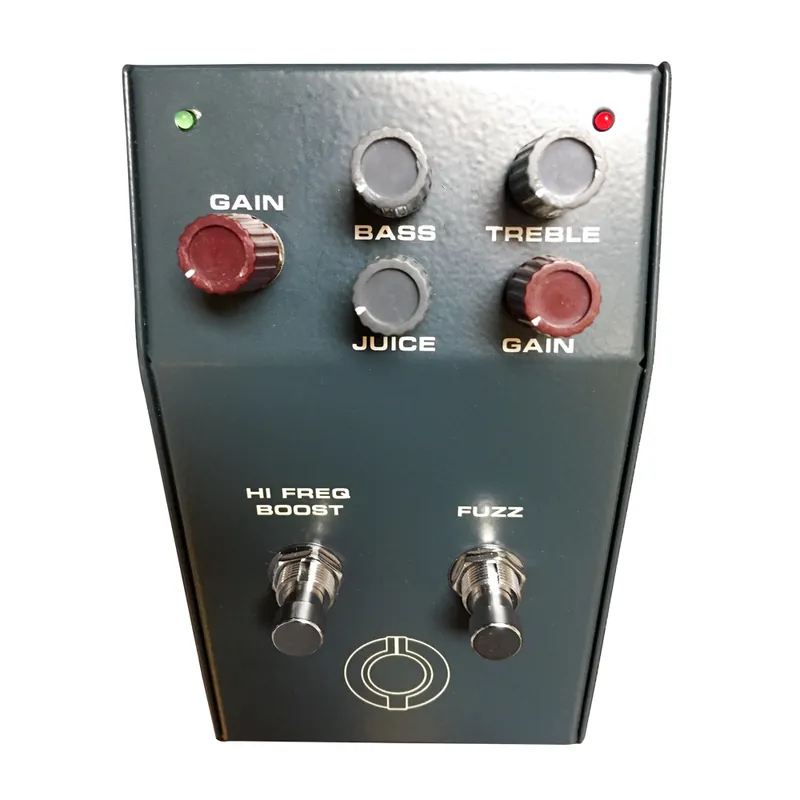

The Hot Fuzz pedal is essentially two pedals in one. The left side is a high frequency boost and the right side is an English 1970’s style fuzz box. The Hot Fuzz can be used independently or in series to create a high frequency distortion.All Solid State design with 4 Bipolar, low noise transistors.Transistor Noise FigureIndividual sections for High Frequency Boost and Fuzz; each section has true bypass foot switch.High Frequency Boost: single stage. Up to 5kHFuzz: triple stage.Sonically selected film, ceramic, mica, and electrolytic capacitors.Individual gain pots for each section. Fuzz section also has control pots for Juice, Bass, and Treble.Output fully adjustable from 0 to 3.5Vrms, referenced to a 40mV input signal and all controls full.Power: Single 9V battery; can be bypassed with external power supply and 2.5mm power jack – center Negative; battery need not be removed.Total Maximum current draw:Unit is powered when input is connected, whether LEDs are on or off. Remove plug from Input jack to conserve battery power.Handbuilt in the USABAE build quality throughout.
