Beschreibung

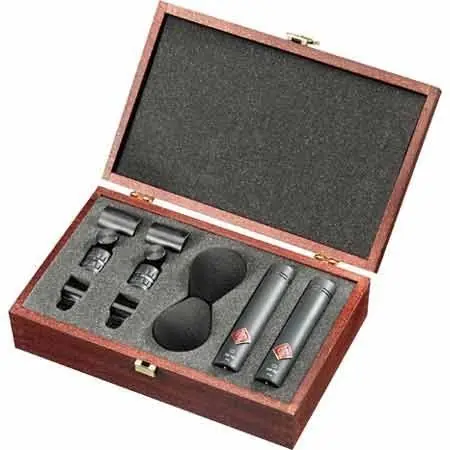

Neumann KM 185 Stereo Set2 * KM 1852 * WNS 100 Windscreen2 * SG 21 StativeadapterKM 185The KM 185 with its hypercardioid characteristic features attenuation of sound incidence from the side or rear of about 10 dB, with minimum sensitivity at an angle of 120°. Features:Successor of the worldwide successful KM 83/84Transformerless circuitryTechnical Specifications:Acoustical operating principle Pressure/Pressure gradient transducerDirectional pattern omnidirectional/cardioid/hypercardioidFrequency range 20 Hz … 20 kHzSensitivity at 1 kHz into 1 kohm 10 mVRated impedance 50 ohmsRated load impedance 1 kohmsEquivalent noise level, CCIR1) 24 dBEquivalent noise level, A-weighted1) 15 dB-ASignal-to-noise ratio, CCIR1) (rel. 94 dB SPL) 70 dBSignal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) 79 dBMaximum SPL for THD 0.5%2) 142 dBMaximum output voltage 10 dBuSupply voltage (P48, IEC 61938) 48 V ± 4 VCurrent consumption (P48, IEC 61938) 3.2 mAMatching connectors XLR 3FWeight approx. 80 gDiameter 22 mmLength 107 mmWNS 110Close range sounds, wind, and fast movements of the microphone boom, all may cause interfering noises. To avoid these unwanted sounds, windscreen accessories are available. Typically, they are made out of open-cell polyurethane foam. These windscreens do not cause interfering resonances and do not influence the directional pattern. Only in the upper frequency range is the output level slightly attenuated. The wind noise attenuation was measured without electrical filtering in a turbulent air stream traveling at 20 km/h, generated by a noiseless wind machine.Acoustically transparent wind and pop protection with improved efficiency.Wind noise attenuation 21 dB. Attenuation at 15 kHz 1 dB. Ø 45 mm, length 70 mm. Color black. SG 21Swivel mount with a plastic clamp for miniature microphones. It has a 5/8″-27 female thread, plus a thread adapter to connect to 1/2″- and 3/8″ stands.
