Beschreibung

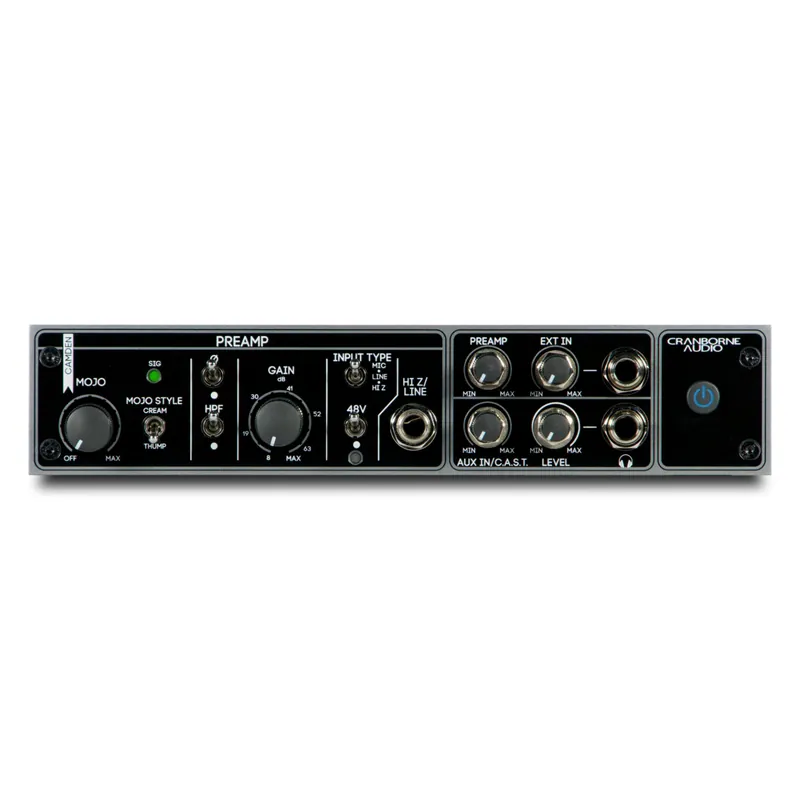

Features:Discrete mic/line/hi-z preamp featuring the award-winning ‘Camden’ topology from the Camden 500 Preamp and Signal Processor for 500 seriesAudio performance at the near-theoretical limits of noise, distortion, and phase/frequency linearity at all gain settingsEIN: THD+N: Intermodulation Distortion: Phase Shift: Freq. Response: ±0.7dB (1000 kHz, 35dB gain), ±1dB (200 kHz, Max Gain)Unique 48v status LED48v LED Lights Orange to indicate voltage charging or dissipating to prevent damage to ribbon microphones and to ensure voltage is fully charged before use48v LED lights RED when voltage is fully charged and ready to use‘Mojo’ analogue saturation circuits with variable control, true bypass, and 2 discrete styles – Thump and CreamThump excites low-end content by boosting lower odd/even harmonics from a range of 160Hz to 20Hz and belowCream boosts odd/even harmonics whilst also reducing the amplitude of the fundamental frequencies and applying typical transformer-style transient tamingDiscrete headphone mixers with independant CH 1, Ext Input, and Aux Input level controlsMonitor the Camden preamp directly with headphones during mic placement to find the sweet spot of the instrument/sourceCreate zero-latency artist mixes by combining the Camden preamp with external playback from Aux Input 1/4” jacks on Camden EC1’s rear panelUse the reference grade headphone amplifier for critical listening by sending stereo mixes from the interface into the Aux input and monitoring directly using Camden EC1’s headphone outputReference-quality, high-powered headphone amplifierFreq. Response: Output Impedance: 0.33 OhmsTHD: 0.0003%, 1kHzOutput Wattage: 2x250mW @ 600 Ohm, 2x450mW @ 220 Ohm, 2x250mW @ 100 OhmBalanced XLR output and impedance balanced 1/4” jack outputs for maximum connectivity into audio interfaces and other downstream equipment-10dB PAD to attenuate preamp output for lowheadroom audio interfacesDedicated Impedance balanced 1/4″ jack Link output for true instrument DI functionality and splitting instrument inputs to balanced or unbalanced amplifiers and effectsC.A.S.T. OUT port for connecting into 500R8/500ADATTransmit Camden EC1’s preamp and Ext Input directly into 500R8 and 500ADAT’s 500 series modules inputs for recording/processingReceive a stereo mix generated from 500R8/500ADAT and monitor using Camden EC1’s headphone mixerAll managed and distributed via a single shielded Cat 5e, Cat 6, or Cat 7 cableExternal high-current 24v, 1.25a power supply with latching connector
