Beschreibung

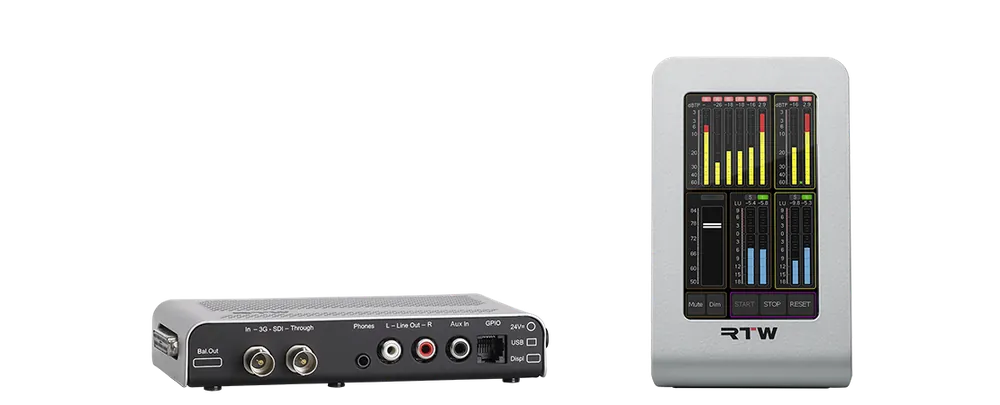

Professional Loudness, True Peak and PPM metering for 3G-SDI audio: TM3-3G Smart4.3″ Desktop TouchMonitor for metering, deembedding and monitoring of 3G-SDI audio signalsFeatures4.3“ capacitve touch screen for vertical or horizontal use (Dimensions: 82.5 x 138 x 50 mm, W x H x D)Flexible display layout with scalable instrumentsSeparate 3G-SDI interface box with audio I/O, USB, GPIO, low voltage connector (Dimensions: 146 x 27 x 85 mm, W x H x D)Audio: 3G/HD/SD-SDI In/Through (BNC), max. 8 digital channels at a timeUSB 2.0 connector (Mini-B), GPIO connector (RJ-12)2-channel Stereo up to 8-channel level and loudness display, 3G-SDI signals alternatively selectable16-channel 3G-SDI deembedder with 8 x AES3 outMonitoring controller with onscreen level faderAnalog Stereo Line Out and Stereo headphone outMoving Coil instrumentsLoudness: EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specificFor more Information please visit manufacturers webpage
