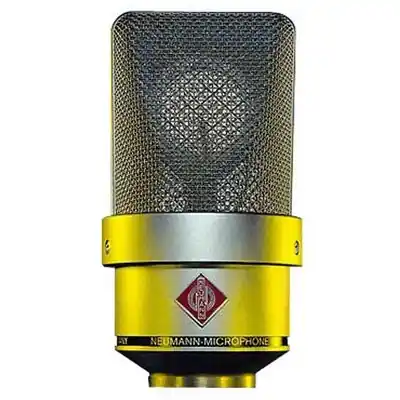

Neumann TLM 103Derived from the famous U87, the affordable Neumann TLM103A is a large diaphragm, cardioid condenser microphone. It’s well-balanced performance and extremely lowself-noise make it the mic of choice for virtually all recording, broadcast and production applications.K 103 Capsule:The TLM103 features the K103 Capsule based on the K87, well known from the Neumann U67 and U87 microphones. The Capsule offers a flat frequency response resulting in accurate sound reproduction. Transformer-less Circuitry:Neumann’s transformer-less output stage ensures low noise on output at even the lowest of levels. Balanced output results in maximum output gain resulting in even lower noise floor. Cardioid Polar Pattern:The cardioid polar pattern effectively isolates source signal Technical Specifications:Transducer (Pressure Gradient) CondenserPolar Pattern CardioidFrequency Response 20 Hz – 20 kHzDynamic Range (Typical) 131 dBSignal-to-Noise Ratio 87 dB, (A-Weighted)Maximum Input Sound Level 138 dB, (@ 1kHz, 0.5% THD)Power Requirements Phantom 48v, (+/-4v)Output Impedance 50 OhmsOutput Connectors XLR-3M TypePad NoneLow Frequency Roll-Off NoneDimensions 5.19 x 2.3″ (131.83 x 58.42mm) LxDdiameterWeight 17.6 oz. (499 g)
