Beschreibung

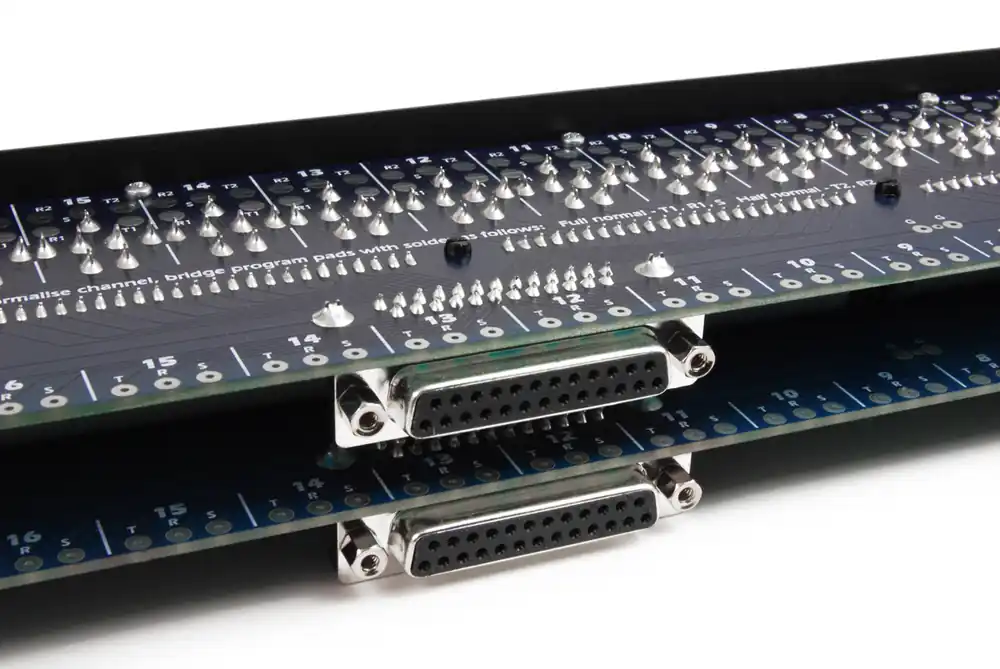

Signex CPJ48D2548-pin Sub-D jack silver.The new Isopatch retains the design strengths of its predecessor, but now has 48 Jacks that are of a new, fully-enclosed design. The new Jack design helps to keep out the contaminants that shorten contact life, they also have a smart chromed ring which gives an improved ‚feel‘ when plugging and un-plugging as well as looking pretty cool!The new Isopatch still has all sockets mounted on two horizontal printed circuit boards (PCBs), rather than vertical cards that can sometimes pop out in use. This type of construction makes the Isopatch very solid and gives full access to most of the circuitry including parallel points and the special ‚program pads‘ for normalising. The use of flexible jumper cables between top and bottom PCBs means that the Isopatch can be opened up for servicing if needed. Unlike many patch panels, the Isopatch offers half or full normalising on every channel, by simply soldering across special ‚program pads‘ on the top PCB – No special tools are needed and there’s nothing to take apart. In fact, if the Isopatch is already installed, you don’t even have to unplug the rear connectors.The Isopatch can be used for most types of audio signal including mono, stereo, balanced and unbalanced lines. It can also be used for mixer insert points without the need for special ’splitter‘ leads. Standard rear connector options are Jack, RCA phono and direct solder, but we can supply a combination of these to special order and for more demanding applications, gold contact versions are also available. Add to this a very slick labelling system for designation of the front sockets and you can see why we call the new Isopatch the Ultimate patch panel.Features: Two rows of 24 type A Jacks in 1U of rack space Enclosed Jack design keeps out dust and dirt Jack, RCA phono or direct solder rear connections Half and full normalising available on all channels Suitable for balanced/unbalanced and stereo signals Lacing Bar Kit available for extra rear cable support Neat slide-in strips for socket designation Suitable for insert points without special leads Gold contact versions also available PCB parallel wiring points for every JackSpecifications: Front sockets:¼“ type A Jack socketsGeneral Half and Full normalising programmable on every channel Switch contact resistance 10,000 operations Min. rack opening required: 442m
