Beschreibung

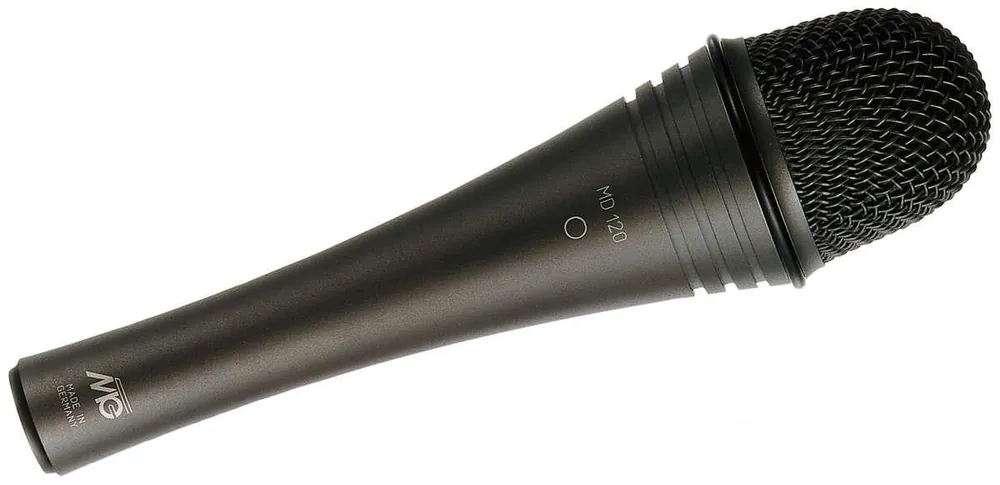

Microtech Gefell MD 120The MD 120 is a dynamic microphone with omni polar pattern and is recommended for high-quality in sound studios and recordings of speech and music in the professional and semi-professional area.The MD 120 is manufactured in Germany together with Mikrofontechnik Leipzig GmbH (MTL) a company with a long history of dynamic microphone produktion. Microtech Gefell prides itself in making quality products and supporting them with promt service.Technical Data Dynamic microphoneMD 120Polar patternomniOperating principleacoustic: Pressure transducerelectric: Moving – coil principleFrequency range50 … 18000 HzSensitivity at 1 kHz1,5 mV / Pa ± 3 dBRated impedance220 Ω ± 30 %Load impedance≥ 1 k ΩMagnetic field disturbing factor at 50 Hz≤ 1 V/TOperating temperature range- 10 °C bis + 45 °COutput connector3-pin XLR-connector,goldplated contactsConnector assignmentpin 2 (+) and 3 moving – coilpin 1 and housing groundWeight380 gDimensions (L x Ø )198 mm x 53 mm
