Beschreibung

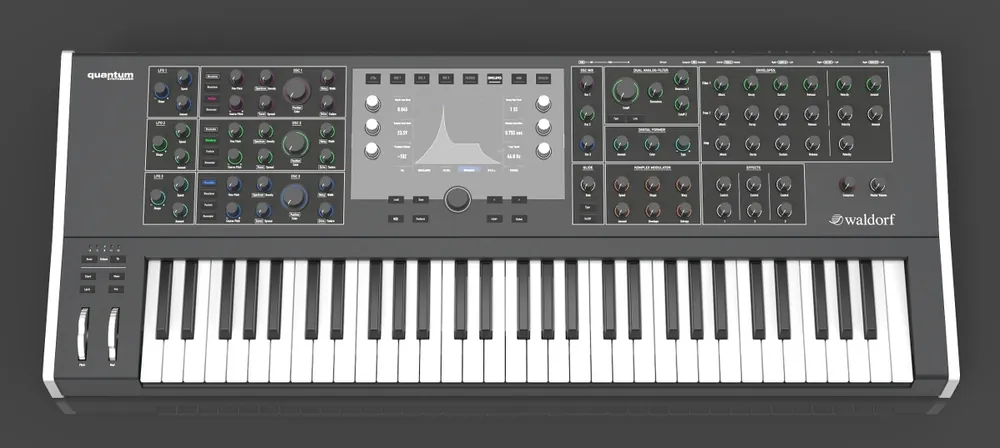

SpecificationsDigital-Analog Polyphonic Synthesizer61 Keys high-quality Fatar TP8S keybed8 voicesDual timbral: split or layered mode with separate stereo audio outputs3 stereo digital oscillators each capable of four synthesis algorithmsWavetable: Waldorf style with latest additions from Nave including speech synthesis, wavetable generation from audio and new featuresWaveform: Waveform with up to 8 simultaneous waves per Oscillator in detuned or chordal mode with hard-sync, warp & PWM as well as tunable noiseParticle: Sampler in traditional and granular mode using multi-samples or live inputResonator: Exciter using multi-sampling plus filter bank sound model.Two analogue lowpass filters per voice each in 24 or 12 dB configuration using innovative link modesDigital former: Additional digital algorithms per voice like comb filter, high-pass, band-pass & notch filters (Nave, Largo or PPG models), bit-crusher, drive and moreFlexible routing system for order of analog filters & digital former and individual oscillator routings6 LFOs in poly and global mode with extensive parameter set6 loopable envelopesKomplex: multistage LFO/envelope modulatorExtensive modulation matrix with 40 slots and easy via-controller assignmentsIntuitive modulation assignment via panel elements and control LEDsMaster effect rack of 5 slots for each timbre choosing from FX like phaser, flanger, chorus, reverb, drive, eq and more.Compressor for main outputStep sequencer with step recording, parameter automation and scale-based pitch quantizationMicrotonal pitch configurations capable of importing Skala scl filesCapable of polyphonic aftertouch via external MIDI inputsChord and latch buttonsUnisono modeModule-based preset system for effects, oscillators, step-sequenzer and Komplex modulatorSingle-function potentiometer and encoder controls for intuitive editingVisualisation and deeper sound editing via context-sensitive high-resolution capacitive multi-touch displaySpectrum Analyzer and Oscilloscope at various processing stagesUp to 10,000 sound patch capacity organized by banks, attributes, author and patch number.Favourites lists for quick recall of sound patches like for set-lists etc.Pre-loaded with wide variety of patches by acclaimed sound designers like Howard ScarrMIDI output of local keyboard, wheels and assignable panel elementsAutomation of sound parameters from MIDI inputs via MIDI CC learn functionRecording of samples from audio inputs or self-recording of audio outputs4 GB*) internal Flash memory for presets, samples and wavetablesPre-loaded with more then 1 GB sample dataExport & import of presets, sample & wavetable via SD cardImport of Nave presetsMod wheel can be assigned to any parameter which can be modulated in the matrix or via quick assignPitch wheel can be assigned to each oscillator individually Sampling capabilitiesEach of the 3 Oscillators of a single timbre can be used in one of three modes using samples:Stereo Multi-Sampler with loopingGranular Sampler with extensive parameter setResonator model using sampler as exciterSamples are organized using key and velocity maps, selections rules like round robin, random etc., and individual pitch, gain and pan settings.Samples are stored in internal Flash memory of about 2GB capacity pre-filled with over 1GB specially made for Quantum factory samples.New samples can be recorded from external stereo audio inputs, or from self-recording Quantums own engine.Samples can also be imported an stored to internal Flash via SD card using WAV file format (44.1kHz sample rate).The Quantum allows for a huge range of sample-based sound design capabilities from classical synths sounds to uncharted territories.It’s worth noting that the sample use in the Quantum is always within a synthesizer’s sonic context, and it is not meant to work as a “bread and butter” sample keyboard to play back like traditional sampling instruments nor third party libraries.Huge range of arpeggiator parameters:7 Algorithms to choose from like up, down, random etc.Octave range7 Sort Orders3 Velocity ModesGate lengthSwingBPMBeat DivisionRhythmic patterns Reset ModesKeyboard Latch chordal and non-chordalIf that’s not enough, individual patterns can be created in the step-sequencer including transpositions and scale quantisations.Connections:2x stereo audio out for main and aux timbresStereo audio input for sample recording and real-time processingHigh-Quality 24bit A/D and D/A convertersHeadphone out with separate level adjustmentSustain pedal inputControl pedal connector also capable of CV input (0-5V sensitivity)USB host type A connector for interfacing MIDI controllerUSB device type B connector for interfacing computer or other class-compliant MIDI USB hosts like iOS devices **)SD Card for sample/preset exchange and software updatesDIN MIDI In, Out & ThruIntegrated power supply unit*) Raw physical data size for complete system including pre-loaded data and system software. Net usable size for audio samples is about 2GB including pre-loaded samples.**) separate Apple „Lightning to USB Camera Adapter“ adapter needed
